Piston Check Valve 900Lb~1500Lb
Standard Material Specifications
|
NO. |
Part Name |
CS to ASTM |
AS to ASTM |
SS to ASTM |
|
Type A105 |
Type F22 |
Type F304(L) |
Type F316(L) |
|
1 |
Body |
A105 |
A182 F22 |
A182 F304(L) |
A182 F316(L) |
|
2 |
Piston Disc |
A276 420 |
A276 304 |
A276 304(L) |
A276 316(L) |
|
3 |
Gasket |
Corrugated SS + graphite |
SS + PTFE |
|
4 |
Bonnet |
A105 |
A182 F22 |
A182 F304 L |
A182 F316(L) |
|
5 |
Nameplate |
SS |
|
6 |
Bolt |
A193 B7 |
A193 B16 |
A193 B8M |
A193 B8M |
|
7 |
Ball |
A182 F304 |
A182 F304 |
A182 F304 |
A182 F304 |
|
Suitable Medium |
W.O.G.etc |
W.O.G.etc |
HNO3,CH3OOH etc |
|
Suitable Temperature |
-29~425 |
-29~550 |
-29~180 |
Note: Other materials are available upon request.

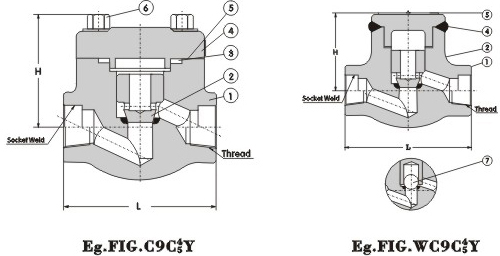

Dimensions (mm) and Weights (Kg)
|
NPS |
Conv. |
3/8" |
1/2" |
3/4" |
1" |
1-1/4" |
1-1/2" |
2" |
|
|
Full |
|
3/8" |
1/2" |
3/4" |
1" |
1-1/4" |
1-1/2" |
2" |
|
L |
92 |
111 |
111 |
120 |
152 |
172 |
200 |
220 |
|
H |
65 |
79 |
79 |
97 |
104 |
120 |
139 |
215 |
|
Weights |
Bolted |
1.6 |
3.4 |
3.3 |
5.5 |
6.0 |
9.2 |
12.9 |
16.2 |
|
Welded |
1.3 |
3.2 |
3.1 |
4.8 |
5.4 |
8.5 |
11.2 |
14.3 |
